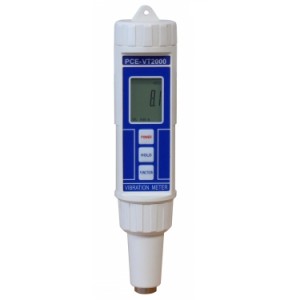

Thiết bị đo độ rung PCE-VT2000 0.1 to 199.9 mm/s

vibration meter to measure vibration in machines and installations

The PCE-VT 2000 vibration meter has been created for the preventative maintenance of machines and installations. This vibration meter can measure vibrations with high accuracy thanks to two important measurement parameters. The vibration meter is an excellent instrument to detect quickly the state of bearings  and gears so the technician will detect in the site the state of machines. The vibration meter is very easy to use. This instrument is mainly used to check vibrations in machines and installations through the vibration displacement.

- To detect quickly equilibrium departure.

- Easy to use.

- Powered by batteries.

- Wide frequency range.

- For the machines preventive maintenance.

- Easy to handle.

- Integrated probe.

- Compact housing.

- Comparison of bearings .

- Hold function.

See / Print user’s manual

Classification of the measurement results (accordint to the ISO 2372 standard)

Observation (the different classes are referred to):
Class I (small enginees up to 15 kW), class II (medium household appliances up to 75 kW),
class III (big household appliances) and
class IV (big engineers / oscilating stator).
The measurement results is obtainted from at least 3 measurements.

Technical specifications

Acceleration

0,5 ... 199,9 m/s₂

0,05 ... 20,39 g

2 ... 656 ft/s₂

Speed

0,5 ... 199,9 mm/s

0,05 ... 19,99 cm/s

0,02 ... 7,87 inch/s

Resolution

Acdeleration

0,1 mm/s2

0,01 gf

0,1 ft/s2

Speed

0,1 mm/s

0,01 cm/s

0,01 inch/s

Frequency o frange (for all the paramenters)

±5%

Frequency range

10 Hz ... 1 kHz

Display

LCD, 20 x 28 mm

Battery

4 x 1,5 AAA batteries

Ambient conditions

0 ... 50º C / <80% H.r.

Reating sequencies

1 second

Dimensions

175 x 40 x 132 mm

Weight

240 g

Images of the PCE-VT 200 vibration meter

Here you will see a vibration meter
testing a machine.

Here you will see the PVE-VT 2000
vibration meter testing an enginee.

This image shows the vibration meter
testing a fixind drilling machine.

The vibration meter with its
additonal devices.

Delivery contents
1 x  PCE-VT 2000 vibration meter, 1 x carrying case, 1 x 30 mm needle, 1 x magnetic base, 4 x batteries and user’s manual.
