Máy đo khoảng cách laser PCE LRF-600 15m - 600m

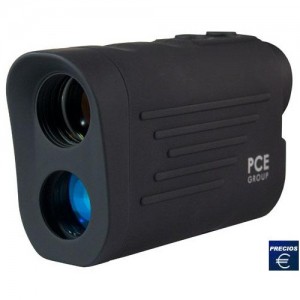

PCE-LRF 600 optical survey equipment

The PCE-LRF 600 optical survey equipment shows and accurate reading of distances of objects viewed in its lens. This survey equipment comes with a safe laser and the ability to view with a 6x zoom, allowing for the measurement of, for example, the distance of a building accurate to within a meter. The PCE-LRF 600 optical survey equipment brings together technical components of the highest quality and meets the highest requirements. It is designed to for ease of handling of the user. To make an observation, free of oscillation, the device will require a certain amount of stability to make an accurate measurement, it is not necessary to measure using two hands, but this can be done with a simple adjustment and by holding the device in only one hand.
The PCE-LRF 600 optical survey equipment allows for quick measurements to be taken at distances of less than 600m. The survey equipment is easy to use as it weighs only 165g, also making it a compact device that is easy to transport.

• Ideal for agriculture, forestry, sports, free time, climate, traffic, architecture, construction, archeology, navigation, etc.

• easy to use

• durable with protection against water splash

• very light

• no keypad

• measures distances in almost any weather conditions

• class 1 laser

View or print the user's manual


Technical specifications

Range of measurement

15m to 600m

Accuracy

±1m / ±0.1%

Zoom

6x

Lens diameter

24mm

Feild of vision of the lens

122m (at 1000m)

Useable be people wearing glasses

yes

Type of laser

class 1

Enclosure

ABS plastic

Power

CR-2 watch battery

Dimensions

39 x 110 x 69mm

Weight

165g (including battery)

Ingress protection

IP 54

Examples of use of the PCE-LRF 600 optical survey equipment

Here we can see the optical survey equipment being used for hunting, quickly determining the distance of the object.

Quickly and accurately measuring the distance of buildings with the PCE-LRF 600 optical survey equipment.

Optical survey equipments can also be used on the high seas, making distance measurements in cloudy conditions.

The optical survey equipment has a range for measuring objects at a distance of up to 600m.

The optical survey equipment can be adjusted to suit the visual needs of each individual user and can be used by people who wear glasses. Thanks to it being so light and compact, it can be used outside without any problems: a quiet device that is protected from water splash and designed to a level of quality which makes it a very attractive instrument.
Stability during a measurement is a very important element. To eliminate the many fluctuations that can occur when measuring wide angles, it is important to keep the survey equipment very still. Considering the short time required for measuring, this is a very important aspect. IF the devide is fixed to a tripod or placed on the roof of a car then greater distances can be measured. When the distance being measured is greater, the more influence vibrations or movements have. IF you follow this link, you will find a selection of optical survey equipments for construction and architecture

Contents
PCE-LRF 600 optical survey equipment, battery and user's manual.
