Camera đo nhiệt độ PCE-TC 3D (-10 ... +250 °C, hiển thị hình ảnh nhiệt)

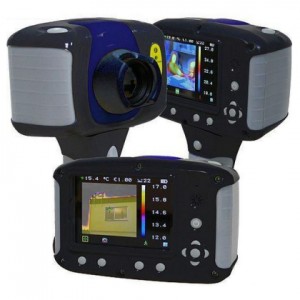

Thermal Imaging Camera PCE-TC 3D
Thermal Imaging Camera for inspection in construction / dual vision/160 xs 120 pixels / it stores images in BMP format / possibility of publishing the images in the recording camera / integrated voice register / 4 measurements sliding points

The PCE-TC 3D Thermal Imaging Camera for inspection in construction  is an essential measuring instrument for any power adviser. In times where the power prices raise constantly, the images caught with the Thermal Imaging Camera for inspection in the construction are a great aid to increase the quality of the house and to lower additional expenses. The Thermal Imaging Camera for inspection in construction PCE-TC 3D is the improvement of our thermal camera more sold PCE-TC 3. Whereas in the past we have resigned consciously to some special functions, now we offer the new Thermal Imaging Camera for inspection in construction PCE-TC 3D with some special functions, like EP thermal and digital camera (dual vision), up to 4 points of measurement of temperature with adjustment of the degrees of emission and temperature difference between 2 points. However, we have maintained the attractive characteristics of the Thermal Imaging Camera for inspection in construction PCE-TC 3, like the high resolution (160 xs 120 pixels), the simple handling, the long operative time of the battery, the additional components that come with the camera and a very attractive price. The use of the Thermal Imaging Camera for inspection in the construction is recommended when the differences between  inner and outer temperature are very big, for example, during winter months. In such cases, the Thermal Imaging Camera  makes visible the losses in energetic power and deficient  isolations. The Thermal Imaging Camera uses artificial different colours. Each temperature receives a different color. For example, the hottest points are white, whereas the coldest points are blue. In this way, you will distinguish how the temperature in the surface is distributed. You will have to consider that the surfaces to analyze must not be warmed up by the sun. It is for that reason that we advised to use the Thermal Imaging Camera for inspection in the construction early in the morning or at dusk. The sharpshooting laThermal Imaging Cameraser of the  allows an exact location of the measurement field. The images are directly saved in a Micro card like a BMP file. You will be able to see, analyse and publish the results in situ (all the registered images directly can be shown directly in the 3,5" screen  by means of a gallery of images), or to transfer them to the PC and to value them by means of software there. The Thermal Imaging Camera has a voice recorder that allows to record commentaries in each image. In case you had questions about the Thermal Imaging Camera for inspection in construction, yo can seethe specifications details next or to contact  us: +44 ( 0 ) 2380 98703 0.

 - Temperature range -10 ... +250 °C
 - Vision field 20° x 15°
 - 160 x 120 measurement points
 - Spectral range 8 ... 14 µm
 - Laser pointer for a better localization
 - Operating time with up to 5 hours accumulator
 - Very high thermal sensibility up to 80 mK
   (0,08 °C)
 - It records up to 1000 images in the Micro-SD
   memory card
 - 4 sliding temperature cursors
 - Adjustable cursors with heir own emission
   grade

 - DFocus minimum distance 0,3 m
 - it shows 2 points  temperature differences
 - Language selection
 - Measurement point on screen  (Hot-Spot /
   Cold-Spot)
 - It registers images with date and time
 - Image on image function (PiP)
 - Adjustable fusion image: 0 ... 100 %
 - Recorded images can be seen and published in
   the camera
 - Voice register to save audio files with its image


PCE-TC 3D Thermal Imaging Camera connections.

 - Headphones connection
 - USB connection
 - Net adapter connection
 - Micro-SD card connection

Temperature range

-10 ... +250 °C

Measurement points / Resolution

160 x 120 pixels  (19.200 points)

Accuracy

±2 °C

Display resolution

192 x 192 pixels

Objetive (FOV)

20 ° x 15 °

Focus

manual

Measurement distance

30 cm to infinite

Thermal sensibility

80 mK (0,08 °C)

Image frequency

8 Hz

Spectral range

8 ... 14µm

Emissivity

0,1 ... 1,0 (adjustable)

Memory

Micro-SD card (up to 1000 images in .bmp file)

Display

3,5" LCD , backlight and up to 8
colour regulable scales.
Digital and thermal fusion image (dual image)

Temperature units

ºC o ºF

Laser pointer

class II

Operating temperature

-15 ... +50ºC

Storage temperature

-20 ... +70 ºC

Air humidity

10 ... 90% R.H. non condensed

Protection

IP 54

Power

ion-lithium storage cell

Operating time

up to 5 hours

Case

plastic

Weight

800 g

Dimensions

130 x 95 x 220 mm

TheThermal Imaging Camera PCE-TC 3 in use

Delivery content
 1 x Thermal Imaging Camera for inspection in construction.
 1 x ion-lithium storage cell.
 1 x adapter.
 1 x carrying case.
 1 x  Micro-SD memory card.
 1 x software.
 1 x user´s manual.
