Dải đo	0.05 ... 7000 lumen trong 4 dải 0.05 ... 9.999 10.00 ...99.99 100.0...999.9 1000 ... 7000
Độ phân dải	0.05 ... 9.999 / 0.001 lumen 10.00 ... 99.99 / 0.01 lumen 100.0 ...999.9 / 0.1 lumen 1000 ... 7000 7 / 1 lumen
Cấp chính xác	0.05 ... 1.0 / ±7 % 0.1 ... 1000 / ±2 % 1000 ... 7000 / ±3 %
Chỉ thị quá tải	OL = báo quá tải
Cảm biến	silicon photodiode
Kết nối cảm biến	25 mm với adapter cho 2, 3, 4, 5, 8, 10 and 24 mm
Chu kỳ đo	mỗi 5 một lần
Bộ nhớ - Bằng tay - Tự động	999 giá trị 38,000 giá trị
Điều kiện hoạt động	0 ... 50 ºC / 0 ... 80 % r. H
Storage conditions	-10 ... 60 ºC / 0 ... 70 %r. H.
Hiển thị	4 số LCD
Power	6 x 1.5 V AAA batteries
Kích thước - Thân máy - Cảm biến - Dây nối	150 x 72 x 35 mm 108 x 94 mm 800 mm
Trọng lượng	470 g

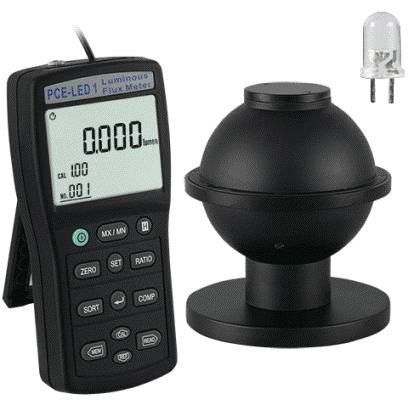

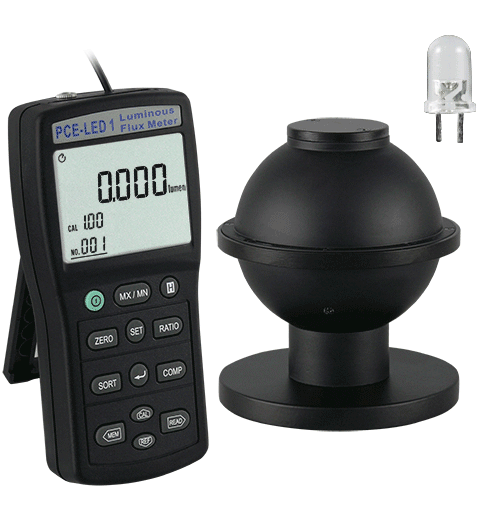

PCE-LED 1 Light Meter light meter to test LEDs / measurement range from 0.05 to 7000 lumens / automatic change of the range in 4 levels / large LCD display with 5 digits for 38,000 values / software and data cable for data analysis included
The PCE-LED 1 light meter is used to check LEDs via an external sensor. With the PCE-LED 1 light meter you will be able to perform single or series measurements with a predetermined reference value. The measured values can be automatically or manually stored in the internal memory of the PCE-LED 1 light meter to be transferred to a PC or laptop. The software and data cable are included in the delivery. The adapted plaques allow you to check LEDs with a diameter between 2 and 24 mm. LEDs cannot be produced with constant optical properties due to their manufacturing process. Even within the same production series, LEDs can be different regarding to the brightness and colour of their components. Thus, LEDs have to be checked during the production stage as well as at the end of the process with the PCE-LED 1 light meter. Additionally, within the research and development of LEDs and products with LEDs, a wide optical characterization is always required. Our PCE-LED 1 luz meter allows you to test the LEDs' status quickly and easily.

- Large LCD display with 5 digits - Measurement range from 0.05 to 7000 lumens - Resolution of 0.001 in the range of 9999 lumens - Sensor: Silicon photodiode - Memory for 38000 values - HOLD function - Reference measurement - Accurate and quick response - Setting of the measurement rate from 1 to 60 seconds	- 7 adapted plaques included in the delivery - 6 x 1.5 V AAA batteries and carrying case - Auto shut-off to save battery life - Automatic change of the range - Software and data cable included in the delivery View / print user’s manual of the PCE-LED 1 light meter

Technical specifications
Ranges	0.05 ... 7000 lumens in 4 ranges 0.05 ... 9.999 10.00 ...99.99 100.0...999.9 1000 ... 7000
Resolution	0.05 ... 9.999 / 0.001 lumen 10.00 ... 99.99 / 0.01 lumen 100.0 ...999.9 / 0.1 lumen 1000 ... 7000 7 / 1 lumen
Accuracy	0.05 ... 1.0 / ±7 % 0.1 ... 1000 / ±2 % 1000 ... 7000 / ±3 %
Overload indicator	OL = Overload
Sensor	silicon photodiode
Sensor connection	25 mm with adapter for 2, 3, 4, 5, 8, 10 and 24 mm
Measurement sequence	every 5 seconds
Memory - manual - automatic	999 values 38,000 values
Operating conditions	0 ... 50 ºC / 0 ... 80 % r. H
Storage conditions	-10 ... 60 ºC / 0 ... 70 %r. H.
Display	4 digits LCD display
Power	6 x 1.5 V AAA batteries
Dimensions - Meter - Sensor - Connection	150 x 72 x 35 mm 108 x 94 mm 800 mm
Weight	470 g

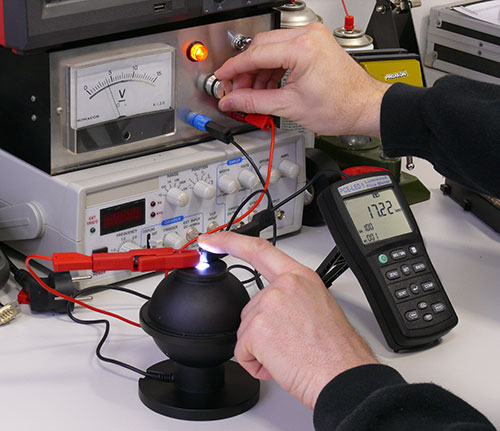

Use of the PCE-LED 1 light meter

Delivery contents 1 x PCE-LED 1 light meter 7 x adaptors 1 x software and data cable 6 x 1,5 V AAA batteries 1 x carrying case 1 x user’s manual
