| Product specifications | |
| Infrared temperature range | 566: -40 °C to 650 °C (-40 °F to 1202 °F) 568: -40 °C to 800 °C (-40 °F to 1472 °F) |
| Infrared accuracy | < 0 °C (32 °F): ± (1.0 °C (± 2.0 °F) + 0.1°/1 °C or °F); > 0 °C (32 °F): ± 1 % or ± 1.0 °C (± 2.0 °F), whichever is greater |
| Display resolution | 0.1 °C / 0.1 °F |
| Infrared spectral response | 8 µm to 14 µm |
| Infrared response time | < 500 msec |
| Thermocouple Type-K input temperature range | -270 °C to 1372 °C (-454 °F to 2501 °F) |
| Thermocouple Type-K input accuracy | -270°C to -40°C: ± (1 °C + 0.2 °/1 °C) (-454 °F to -40 °F: ± (2 °F + 0.2 °/1 °F)) -40°C to 1372°C: ± 1 % or 1 °C (-40 °F to 2501 °F: ± 1 % or 2 °F), whichever is greater |
| D:S (distance to measurement spot size) | 566: 30:1 568: 50:1 |
| Laser sighting | Single-point laser < 1 mw output Class 2 (II) operation, 630 nm to 670 nm |
| Minimum spot size | 19 mm (0.75 in) |
| Emissivity adjustment | By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01 |
| Data storage with Date/Time stamp | 566: 20 points 568: 99 points |
| PC Interface and cable | 566: None 568: USB 2.0 with FlukeView® Forms software |
| Hi/Low alarms | Audible and two-color visual |
| Min/Max/Avg/Dif | Yes |
| Display | Dot matrix 98 x 96 pixels with function menus |
| Backlight | Two levels, normal and extra bright for darker environments |
| Trigger lock | Yes |
| Switchable Celsius and Fahrenheit | Yes |
| Power | 566: 2 AA/LR6 Batteries 568: 2 AA/LR6 Batteries and USB when used with a PC |
| Battery life | If used continuously: laser and backlight on,12 hours; laser and backlight off, 100 hours |
| Operating temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage temperature | -20 °C to 60 °C (-40 °F to 140 °F) |
| Bead thermocouple Type-K range | -40 °C to 260 °C (-40 °F to 500 °F) |
| Bead thermocouple Type-K accuracy | ± 1.1 °C (2.0 °F) from 0 °C to 260 °C (32 °F to 500 °F), typically within 1.1 °C (2.0 °F) from -40 °C to 0 °C (-40 °F to 32 °F) |

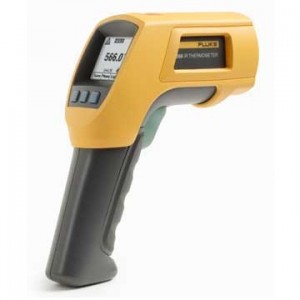

Fluke 566 includes:
Manufacturer: Fluke - USA
Made in CHINA
