Máy dò từ trường PCE-G28 (0 ~ 2000 μT)

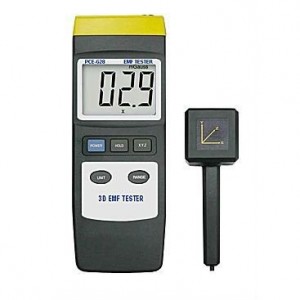

PCE-G28 Magnetic Field Measuring Device
with triaxle sensor for magnetic fields

The PCE-G28 Magnetic Field Measuring Device for magnetic fields comes with a triaxle sensor to determine electro-magnetic radiation. The rMagnetic Field Measuring Device has been specially designed to measure transformers and for evaluating magnetic fields generated by computer monitors, industrial electrical installations and electro-motors. The Magnetic Field Measuring Device meets such European standards as: the European Union Electromagnetic Compatibility Directive IEC 801-1 (EN 50081-1), such as for laboratory prescriptions and measuring instruments IEC 204 (EN 60204). By way of a triaxle sensor, it can save conversions for each axis. This small gaussmeter for electrical fields has some characteristics which are useful in an industrial setting.  It is easy to use and very accurate.

• Triaxle sensor for electric fields

• Hold function

• µT or mGs units of measurement

• Large LCD

• Wide frequency range up to 300Hz

• Easy to use

• Battery powered

• For analysis within the work environment

• Meets these European standards: IEC801-1 (EN 50081-1) / IEC204 (EN 60204)

Here you will find an overview of all the Magnetic Field Measuring Device we have available to meet your needs.

PCE-G28 Magnetic Field Measuring Device
View or print the user's manual

Electro magnetic fileds are produced when electrical equipment or devices are used. They can have a huge influence on the human body depending on their frequency. The consequences can be a simple discomfort, a nervous excitement or more seriously, internal burns. As such, it is necessary to determine the risk to workers exposed to electromagnetic fields and to apply health and safetly standards for industries.
Basically there are two areas of exposure, called exposure 1 and 2:
The first area of exposure includes all controlled areas, such as industrial electrical workshops and areas controlled by a company. It also includes areas of general access where there is a brief exposure due to the way the installation is setup.  This brief exposure equates to a work shift. The safety charge can determine the electro.magnetic radiation in Gauss or in Tesla and classified with the help of the Flow Meter with a winged wheel to determine the speed and the volumetric flow of the air.
High accuracy
It measures air speed and temperature
It calculates the flow
Graduably adjustable, free introduction of the integration timedevice. With an technical frequency of energy of "f" = 50Hz in the first area of exposure the limit is considered to be 1.36µT, and in area 2 the value is 0.42µT.


                Fuse box                    Magnetic divider                 Transformer


       Using the Magnetic Field Measuring Device            Measuring radiation emitted by
                 on a computer monitor.                             electro magnetic fields of power lines.

Delivery contents
PCE-G28 Magnetic Field Measuring Device, triaxle sensor with 1m cable, battery, carrying case and user's manual
