Indicates the nominal value / Calibrator for simulations and graphic measurement / pulse generator (easy and cycle ramps)

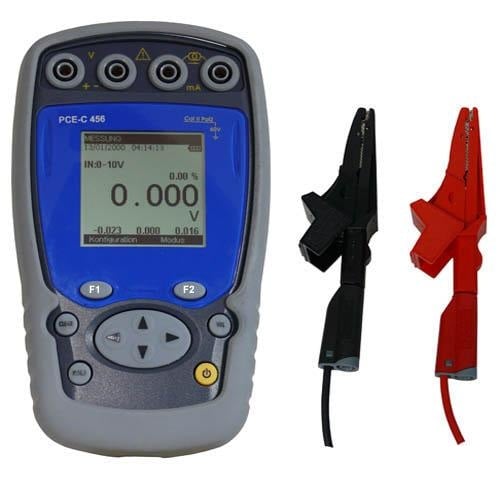

The universal and portable Calibrator PCE-C 456 is mainly used for both calibration and maintenance. This universal Calibrator PCE-C 456 allows the simulation and measurement of electrical magnitudes both on the spot and in the laboratory. The universal Calibrator PCE-C 456 has diverse functions such as: measuring functions, voltage and current simulation (continuous voltage and current or low frequency ramps) and continuity test (in passive circuits). Due to its control structure (regulation) in the simulation mode is not possible to perform a measurement and a simulation at the same time. The universal calibrator PCE-C 456 has a lot of additional functions such as: - Indication of the results according to the linear and non-linear conversion law / - pulse generation of simple or cyclic ramps. This device we have on offer is a high quality alternative to those which are normally found on the market.

Real-time date and time Portable device powered by 4 AA batteries (it can be also powered by a 1,7 Ah accumulator) Battery indicator Operating time: 10 ... 40 h Graphic indication of 160 x 160 pixels USB port Language selection for programmation and messages (languages: Spanish, German, French and English) Backlight display (it can be disable) ABS housing with rubber protective cover. IP54 impermeability according to the EN 60529 standard. It meets the EN 61010/ CEM-EN 61326 standard An ENAC calibration certificate can be ordered as an option.	USB port of the Universal Calibrator PCE-C 456 View / print user's manual of the universal Calibrator
Ramp functions

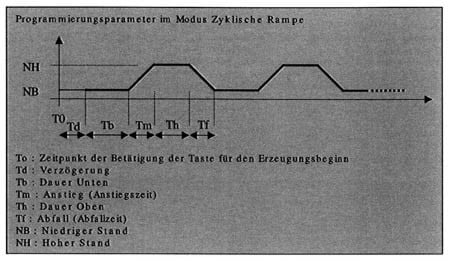

The universal Calibrator PCE-C 456 provides diverse programming possibilities: sliding, pulse or ramp according the the specification (valve, % PE), with lineal or quadratic ruler. Standard ramp functions
Images of its use
	- Here we can see the universal calibrator testing multimeter voltaje. - The Calibrator PCE-C 456 is very useful in the calibration laboratory, in the workshop as well as in the adjustment of the meters for the research and development field.
Technical Specifications
Measuring functions
mA DC Current
Range	4 … 20 mA 0 … 20 mA 24 mA
Resolution	1 µA 1 µA 1 µA
Accuracy	±0,015 % +2 µA of the measuring value ±0,015 % +2,6 µA of the measuring value ±0,015 % +2 µA of the measuring value
Temperature coefficient	<20 ppm / ºC de 0 ... +18 ºC y de +28 ... +50 ºC
Possible circuit feeder	24 V ±10 %
Input resistance (Rin)	<30
HART compatibility	R = 250 Ω
Common Mode Suppression	120 dB a 50 y 60 Hz
V DC Voltage
Range	0 ... 10 V 25 V 50 V
Resolution	1 mV 1 mV 1 mV
Accuracy	±0,015 % + 2 mV of the measuring value ±0,015 % + 2 mV of the measuring value ±0,015 % + 4 mV of the measuring value
Temperature coefficient	<15 ppm / ºC de 0 ... +18 ºC y de +28 ... +50 ºC
Series mode rejection	>60 dB a 50 y 60 Hz
Common mode rejection	>120 dB a 50 y 60 Hz
Function generator
mA DC Current
Range	4 … 20 mA 0 … 20 mA 24 mA
Resolution	1 µA 1 µA 1 µA
Accuracy	±0,015 % +2 µA of the measuring value ±0,015 % +2,6 µA of the measuring value ±0,015 % +2 µA of the measuring value
Temperature coefficient	<20 ppm / ºC de 0 ... +18 ºC y de +28 ... +50 ºC
Attack	<500 µS (0 ... 20 mA con una carga de 20 Ω)
Low frequency noise	<1 µA (con F <100 Hz)
V DC Voltage
Range	0 ... 10 V 15 V
Resolution	1 mV 1 mV
Accuracy	±0,015 % + 2 mV of the measuring value ±0,015 % + 2 mV of the measuring value (Iout max = 10 mA (a 10 V)) (Iout max = 8 mA (a 15 V))
Temperature coefficient	<15 ppm / ºC de 0 ... +18 ºC y de +28 ... +50 ºC
Attack	<1 mS (0 ... 15 V con una carga de 1 MΩ)
Internal resistance	1 Ω
Low frequency noise	<1 mV (con F <100 Hz)
Continuity function
Range	Continuity
Resolution	open / close (it is considered as closed if Z=[0 ... 1 kΩ] and open if Z=[1 kΩ ... ∞ ]
General properties
Display	160 x 160 graphic display
Operating temperatura range	0 ... +50 ºC
Operating humidity range	<85 % H.r.
Storage temperature	-10 ... +60 ºC
Storage humidity	<85 % H.r.
Power	4 x AA batteries or 1,7 Ah accumulator
Operating time	U and I measurement (>40 h) mA / 24 V simulation (>10 h) Standby mode >95 days
Battery indication	yes
Dimensions	157 x 85 x 45 mm
Weight	approx. 300 g
Delivery contents 1 x universal Calibrator PCE-C 456, 1 x carrying case, 4 x batteries, 1 x hand belt, Test cables with crocodile clips, user’s manual
