Bộ ghi dữ liệu nhiệt độ PCE-HPT 1 (-100 ... +400 °C)

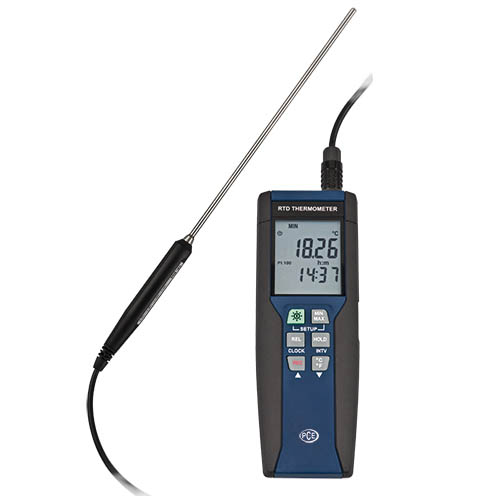

  Data Logger with Microprocessor PCE-HPT 1
1-channel thermometer with 4-wire class A Pt100 sensor / software for transmission and data value / internal data logger

The Data Logger with microprocessor is a high precision 1-channel temperature gauge. The Data Logger with microprocessor is ideal for use with various Pt100 sensors. BDue to the fact that it uses 4-wire technology has a very fast response time and precision. Therefore, the sensors of the Data Logger with microprocessor are ideal for all processes that require precision and quick response. The temperature range of the Data Logger with microprocessor reaches of -100 to +400 º C. The comprehensive software and easy to use Data Logger with the microprocessor allows a simple assessment and see the values of a real-time measurement. The internal clock with date and time allows the user to accurately assign the results. The Data Logger has an internal data logger with adjustable measuring range. If you have any questions about the Data Logger with microprocessor, see the technical data below or call us:+44 ( 0 ) 2380 98703 0. Our engineers and technicians will be happy to advice you with the Data Logger, and of course, on the other products in the field of regulation and control, measuring instruments and scales or balances.

Data Logger with microprocessor PCE-PCE-HPT 1

- 1 channel temperature Recorder
- Automatic shutdown
- High accuracy
- Backlight
- Software included

- Internal data logger
- Internal Clock
- class A,  4-wire. Pt100 sensor
- Data-Hold Function
- Selectable units (° C / ° F)

Technical Specifications

Sensors

Measurement range

Measurement range

-100 ... +400 °C

Accuracy

±0,05 % +0,1 ºC (between 18 ºC y 28 ºC) just the device

Resolution

0,01 ºC

Sensor

 class A,  4-wire. Pt100 sensor

Display

5 positiions, LCD

Data transmision

USB

Reproducibility

a  measurement value every 0.5 s

Power supply

1x 9V battery or network adapter (optional)

Dimensions

185 x 65 x 36 mm

Weight

360 g,

Operating conditions

0 ... 60 ºC, 80% R.H.

Storage conditions

-10 ... 60 ºC, 80% R.H.

Delivery content

1 x Data Logger PCE-TDL100 with  microprocessor, 1 x Pt100  sensor , 1 x USB cable, 1 x software, 1 x 9V battery, 1 x user´s manual
