Dải đo Nhiệt độ Độ ẩm Áp suất	-10ºC đến 65ºC 0 - 100% r.h., -20ºC đến 65ºC 0 - 2500 mbar tuyệt đối
Cấp chính xác: Nhiệt độ Humidity Áp suất	±0.1ºC (5ºC đến 45ºC) ±0.2ºC (-10ºC đến 65ºC) ±2% r.h. (10 - 90% r.h., 0ºC đến 40ºC) ±0.5ºC (0ºC đến 40ºC) ±2.5 mbar (750-1100 mbar tuyệt đối)
Thời gian lấy mẫu: Nhiệt độ, độ ẩm Áp suất	1/s đến 12 h 10/s đến 12 h
Bộ nhớ	đến 2,000,000 giá trị đọc
Thời gian bắt đầu và dừng	Có thể lập trình
Mức cảnh báo	Người sử dụng điều chỉnh
Chỉ thị trạng thái	3 LEDs
Cổng kết nối	USB
Phần mềm	Bao gồm
Điểm sương	Tính toán trong phần mềm (sai số±2ºC)
Nguồn cung cấp	Pin sạc (170 mAh) qua cổng USB, dùng đc nhiều tháng (1phút đo một lần).
Điều kiện hoạt động	-20 to 65ºC / 500 mbar đến 2500 tuyệt đối
Kích thước	20 x 15 x 52mm PCE-MSR 145S
Trọng lượng	16 g PCE-MSR 145S
Nhiệt độ hoạt động	-20 đến 70°C
Vật liệu vỏ	silicone
Tiêu chiẩn	PCE-MSR 145S: IP 60

Data logger for measurements over prolonged periods of time, weighs only 18g, memory for 2,000,000 readings for humidity, pressure, temperature, acceleration and position, uses a Lithium-ion battery.
The PCE-MSR145 data logger is used for measuring and storing different physical magnitudes. The data logger contains sensors for temperature, both humidity and temperature, pressure and acceleration using three axis (X, Y and Z). Measurement data from the PCE-MSR145 can be transferred at the end of a measurement cycle, or while data are being gathered. Using the software, which comes included, measurement intervals can be set and data can be stored on the PCE-MSR145 according to your requirements. Thanks to the integrated real time clock data can be grouped by synchronizing time intervals from a set of data loggers and all within the same indez. Typical fields of use for this data logger include transport, pharmaceutical industry, technical environments, aviation, research and development, manufacturing of machinery, medicine, chemistry and industrial textiles.
PCE-MSR145S (standard version)	The actual size of the PCE-MSR145S data logger.
- Temperature - Relative humidity with temperature sensor integrated - Pressure (eg. altimeter, sea level, barometer) - Memory for 2,000,000 readings - Start / Stop via keypad - Weighs only 18 grams - Compact design, only 52mm (MSR145S)	- USB port - Software for data analysis is included - Date and time - Adjustable measurement quota (1 sec. to 12 h.) - Long life Lithium-Ion rechargeable battery - Status indicated by 3 LEDs (with alarm) View or print the user's manual

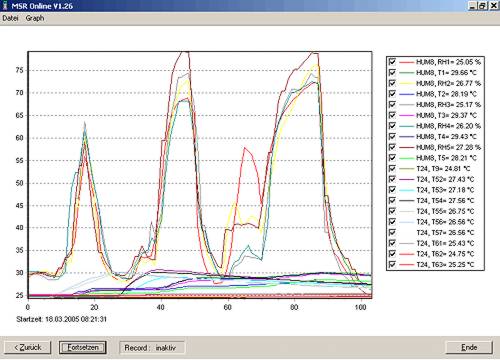

Software
Using the software package included with the device, it is possible to read and analyse stored data. To ensure that the date and time remains constant for a series of data, the PCE-MSR145 comes with a real time clock (RTC).
Technical specifications
Measurement range: Temperature Humidity Pressure	-10ºC up to 65ºC 0 - 100% r.h., -20ºC up to 65ºC 0 - 2500 mbar absolute
Accuracy: Temperature Humidity Pressure	±0.1ºC (5ºC up to 45ºC) ±0.2ºC (-10ºC up to 65ºC) ±2% r.h. (10 - 90% r.h., 0ºC up to 40ºC) ±0.5ºC (0ºC up to 40ºC) ±2.5 mbar (750-1100 mbar absolute)
Measurement quota: Temperature and humidity Pressure	1/s for 12 h 10/s for 12 h
Memory	up to 2,000,000 readings
Start / finish time and date	programmable
Alarm levels	user adjustable
Status indication	3 LEDs
Port	USB
Software	included
Dew point	is calculated by the software once data has been received (accuracy of ±2ºC)
Power	rechargeable lithium-polymer (170 mAh) Batteries are charged via the USB port A single charge will last several months (1 measurement per minute).
Operating conditions	-20 to 65ºC / 500 mbar to 2500 absolute
Dimensions	20 x 15 x 52mm PCE-MSR 145S
Weight	16 g PCE-MSR 145S
Operating temperature	-20 to 70°C
Cover material	silicone
Medium	Aire en el PCE-MSR 145S
Standards	meets with EU RoHS / WEEE PCE-MSR 145S: IP 60
Examples of use for the PCE-MSR145S series data logger
The PCE-MSR145S data logger being used in transport.
Contents PCE-MSR145 data logger, software with cable and user's manual.
