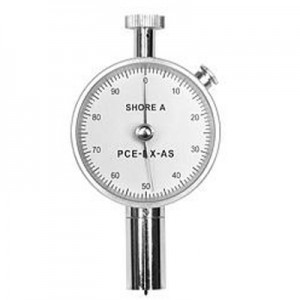

Đồng hộ đo độ cứng cao su PCE-DX-AS 0 đến 12.5 N

Mechanical hardness tester for measuring hardness of soft elastomer,
with drag needle for an accurate measurement of peak value

The PCE-DX-AS hardness tester is used for measuring surface hardness (shore A) of hard rubbers and soft plastics. The shore hardness tester is composed of a single component with a measuring head and a 360º dial. The device can be calibrated with the calibration standard when required, and can be ISO calibrated and certified as an optional accessory at extra cost. To improve the readability of peak value, the device comes with a drag needle, that ensures the maximum reading can be captured. Once it has been measured, it can be reset to zero. With the PCE-DX-AS (A) model of hardness tester, you will always obtain the most accurate value of maximum pressure and also be able to accurately reproduce this value.

- With drag needle
- Measures in different hardness units
- A 360º dial
- Highly accurate
- Meets with all standards
- Comes with a small carrying case
- An optional ISO calibration with certification can
  be ordered

View or print the user's manual


Technical specifications

Force of pressure

0 to 12.5 N

Penetrating body

35º (according to Shore A)

Diameter of dial

57mm

Total length

110mm

Displayed range

0 to 100

Measurement range

10 to 90
(pressure diminishes below 10 and above 90)

Margin of error

±1

Division of scale

1

Drag needle

yes

Weight

160g

Contents
PCE-DX-AS Shore A hardness tester with drag needle, carrying case and user's manual.
