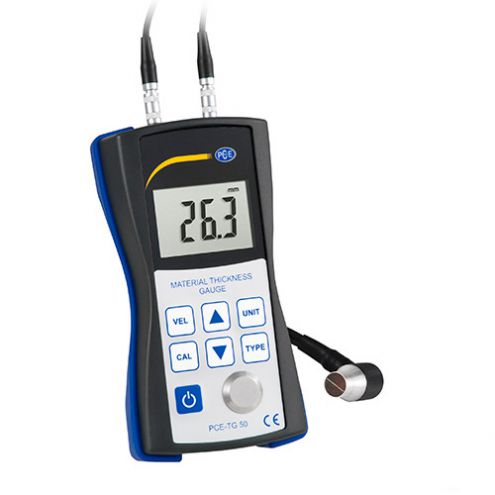

Máy đo độ dày (kim loại, thủy tinh, nhựa) PCE- TG 50 (200mm)

Material thickness meter using ultrasound with a measurement range of 1,0 ... 200 mm /
calibration block integrated / interface cable and software (optional)
/ sound velocity can be adjusted

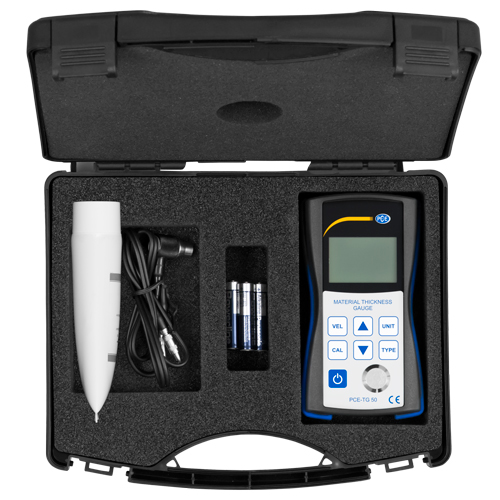

The PCE-TG 50 Material Thickness Meter is a compact device to determine the thickness of metals, glass and homogeneous plastics. The PCE-TG 50 Material Thickness Meter uses an external sound sensor that produces ultrasonic sound waves that penetrate the object being measured. Different materials allow ultrasonic waves to pass through as different velocities, and the Material Thickness Meter allows for the ultrasonic waves to be adjusted. The PCE-TG 50 Material Thickness Meter can detect in seconds the thickness of metal, glass, plastic and other homogeneous materials. The PCE-TG 50 Material Thickness Meter is easy to operate through only seven keys. The PCE-TG 50 Material Thickness Meter can be calibrated on the spot thanks to the external calibration weight included in the delivery. All the measurement values can be transferred to a PC via the optional software for further analysis. With the software you will be able to export data to other calculation programs such as Microsoft Excel. An ISO calibration certificate can be ordered separately for the device. If you have any questions, please contact us and our engineers and technicians will help you to find the material thickness meter that best suits your needs.
