Maximum measurement load	5.000 N / 500 kg
Resolution	1 N / 100 g
Dynamometric cell cable length	approx. 3 m
Measurement uncertainty	±0,05 % of the measurement value
Gravitation map	manual setting by means of a GPS
Measuring units	N, g, lb, oz, kg
Calibration	with F2 calibration weights
maximum overload	±20 % of the measurement range
Measurement rate	adjustable 10 values/s or 40 values/s
Measurement function	Traction and compression measurement / PEAK function (max, min, Hold) / measurement of limit values / real time measurements by means fo the software
Display	61 x 34 graphic display / simultaneous indication of relevant values such as date, time and current measurement value / automatic reverse display / setting of backlight, etc...
Menu	multilingual: German / English / Spanish
Internal memory	8 memory positions with 800 respective measurements
Record	manual - pressing one button automatic - 0,025 s - 99,9 s
Interface	RS-232, 9 poles
Printer connection	through the RS-232 interface
Software and data cable	with software for the control and valuation l
Operating conditions	-10 ºC ... +40 ºC
Power supply	internal NiMH accumulator ~230 V / 12 V mains adapter included Setting of the auto shut-off function
Accumulator duration	approx. 20 h (without backlight, approx. 45)
Dimensions	210 x 110 x 40 mm
Weight	550 g (without the dynamometric cell)

Traction and compression Force Gauge / internal memory / external cell / graphic display / statistic valuation / measurement of limit values / PEAK function / software included

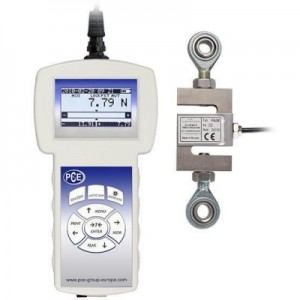

The hand-held PCE-FG K series Force Gauge measures pressure and compression force. The PCE-FG K series Force Gauge has an external dynamometric cell with a 3 m cable. The PCE-FG K series Force Gauge for traction and compression forces has two adjustable velocities which allow for an optimal real time record of traction and compression measurements. The PCE-FG K series Force Gauge has a wide internal 8-positions memory with 800 measurements. The measurement is manually performed by pressing a button or it can be automatic if the measurement rate has been previously set. The PCE-FG K series Force Gauge has a reversible graphic display. The PCE-FG K series Force Gauge offers a statistics valuation which includes details such as the number of measurements, total force, average force, max. and min. values, single values and histogram graphic representation. The PCE-FG K series Force Gauge with external dynamometric cell allows to print data as a GLP / ISO protocol by means of a direct connection to the printer. The software included in the delivery enables a real time record as well as a valuation of the measurement values. The PCE-FG K series Force Gauge also features the simultaneous display of max. and min. values. Measuring units can be set: N, kg, g, lb and oz. The menu of the PCE-FG K series Force Gauge is available in three different languages. The PCW-FG K series Force Gauge uses the gravitational force.

External dynamometric cell Traction and compression force gauge High measurement rate can be ser Accuracy 0,02 % PEAK function (min./max.) Limit value function Limit value function / setting of the measurement value Different measuring units It can be calibrated by means of external calibration weights. Manual or automatic measurement Memory of 8 x 800 measurement values Graphic valuation	Graphical display that automatically reverses Menu: German, English, Spanish Software included Date and time Printing of the GLP / ISO protocol Automatic shut-off Max. overload 20% Low battery indication It can be powered by a mains component View / print user's manual of the PCE-FG K series force gauge
Technical Specifications
Maximum measurement load	5.000 N / 500 kg
Resolution	1 N / 100 g
Dynamometric cell cable length	approx. 3 m
Measurement uncertainty	±0,05 % of the measurement value
Gravitation map	manual setting by means of a GPS
Measuring units	N, g, lb, oz, kg
Calibration	with F2 calibration weights
maximum overload	±20 % of the measurement range
Measurement rate	adjustable 10 values/s or 40 values/s
Measurement function	Traction and compression measurement / PEAK function (max, min, Hold) / measurement of limit values / real time measurements by means fo the software
Display	61 x 34 graphic display / simultaneous indication of relevant values such as date, time and current measurement value / automatic reverse display / setting of backlight, etc...
Menu	multilingual: German / English / Spanish
Internal memory	8 memory positions with 800 respective measurements
Record	manual - pressing one button automatic - 0,025 s - 99,9 s
Interface	RS-232, 9 poles
Printer connection	through the RS-232 interface
Software and data cable	with software for the control and valuation l
Operating conditions	-10 ºC ... +40 ºC
Power supply	internal NiMH accumulator ~230 V / 12 V mains adapter included Setting of the auto shut-off function
Accumulator duration	approx. 20 h (without backlight, approx. 45)
Dimensions	210 x 110 x 40 mm
Weight	550 g (without the dynamometric cell)
Display indication
Date and time, battery low indication, velocity of measurement, force and max. and minimum values.	Memory data as a diagram format. It is possible to check single details.
Frequency distribution of the PCE-FG K series Force Gauge.	8-positions memory which can be individually identified, 800 measurements.
Software
The PCE-FG K serForce Gaugeies with dynamometric cell to measure traction and compression forces is delivered together with a software. The software allows the user to read and check values detected with the force gauge. The Force Gauge shows a traction and compression measurement with limit values. Below, you will find a statistical valuation of the measurement, max., min. and average value as well as the different settings of the PCE-FG K series Force Gauge.

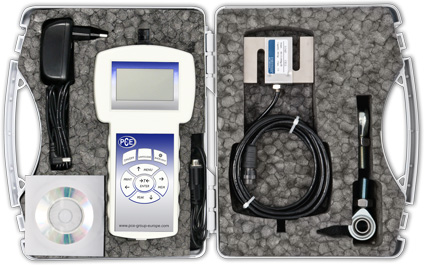

Delivery contents 1 x PCE-FG K series Force Gauge for traction and compression forces, 1 x external dynamometric cell, 1 x mains component, 1 x software, 1 x transmission cable RS-232, 2 x carrying cases
