Đồng hồ đo LCR Lutron LCR-9184 (100Hz - 100KHz)

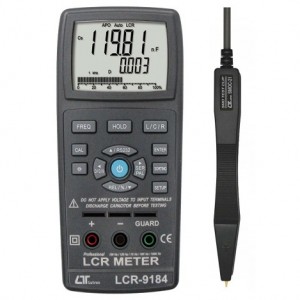

(ảnh Đồng hồ đo LCR Lutron LCR-9184)

Đồng hồ đo LCR
100 Hz/120 Hz/1 KHz/10 KHz/100 KHz
Ls/Lp/Cs/Cp/Rs/Rp with D/Q/θ /ESR parameters
Hãng sản xuất : Lutron - Đài Loan
Bảo hành 12 tháng

19,999/1,999 counts dual LCD display.

AutoLCR smart check and measurement.

Serial/Parallel modes are selectable.

Ls/Lp/Cs/Cp with D/Q/θ/ESR parameters.

Support DCR mode 1.00 Ωto 200.0 MΩ.

Five different test frequency are available :

- 100 Hz/120 Hz/1 KHz/10 KHz/100 KHz.

Test AC signal level : 0.6 V rms typically.

Test range : ( ex. F = 1 KHz )

- L : 200.00 uH to 2000.0 H

- C : 2000.0 pF to 2.000 mF

- R : 20.000Ωto 200.0 MΩ

Multi-level battery detector.

LCD with green light backlight，easy reading.

RS232/USB PC Computer interface.

Can default auto power off.

Giá: 5.700.000 VND

Báo giá Đồng hồ đo LCR Lutron LCR-9184

Đặt hàng

FEATURES

* 19,999/1,999countsdualLCDdisplay.

* AutoLCRsmartcheckandmeasurement.

* Serial/Parallelmodesareselectable.

* Ls/Lp/Cs/CpwithD/Q/θ/ESRparameters.

* SupportDCRmode1.00Ω to200.0MΩ .

* Fivedifferenttestfrequencyareavailable: 100Hz/120Hz/1KHz/10KHz/100KHz.

* TestACsignallevel:0.6Vrmstypically.

* Testrange:(ex.F=1KHz)L:200.00uHto2000.0H
C:2000.0pFto2.000mFR:20.000Ω to200.0MΩ

* Multi-levelbatterydetector.

* LCDwithgreenlightbacklight，easy reading.

* RS232/USBPCComputerinterface.

* Candefaultautopoweroff.

GENERAL SPECIFICATIONS

Display	LCDsize：56.4X52.9mm. LCDwithgreenbacklight(ON/OFF)
Testfrequency	100Hz/120Hz/1KHz/10KHz/100KHz
Function	L/C/RFunctionselector FrequencyselectorD/Q/θ /ESRselector Sortingmodeselector Backlight
Dissipation factor	0.000to999
Qualityfactor	0.000to999
θ measurement	± 90°
Sorting tolerance mode	±0.25%,±0.5%,±1%,±2%,±5% ±10%,±20%,+80%-20%
Calibration	Open/Short calibration
DataHold	Freezethedisplayreading
Dataoutput	RS232/USB PCcomputerinterface
Poweroff	Autoshutoffsavesbatterylifeormanualoffbypushbutton
Operating temperature	0℃to50℃
Operating humidity	Lessthen85%R.H.
PowerSupply	006PDC9Vbattery *AlkalineorHeavydutytype
PowerSupply	DC9Vadapterinput *AC/DCpoweradapterisoptional.
Power consumption	DC35mAapproximately
Dimension	193x88x41mm
Weight	420g *meteronly
Standard Accessories Included	* Instructionmanual.......................1PC * Alligatorclips(redandblack)......1Pair
Optional Accessories	SMDtester,SMDA-22 SMDtestclip,SMDC-21 Holster, HS-03 ACtoDC9Vadapter Hardcarryingcase,CA-06 Softcarryingcase,CA-05A

ELECTRICALSPECIFICATIONS (23±5℃) Resistance(DCR)

Range	Accuracy	Remark
20Ω	±(0.5%+5d)	AfterShortCAL.
200Ω	±(0.5%+5d)
2KΩ	±(0.5%+5d)
20KΩ	±(0.5%+5d)
200KΩ	±(0.5%+5d)
2MΩ	±(0.5%+5d)	AfterOpenCAL.
20MΩ	±(1%+5d)	AfterOpenCAL.
200MΩ	±(2%+5d)	AfterOpenCAL.

Resistance(Rp/Rs)

Range	Accuracy	Accuracy	Remark
	100Hz/120Hz	1000Hz
20Ω	±(1%+5d)	±(1%+5d)	After ShortCAL.
200Ω	±(0.5%+5d)	±(0.5%+5d)
2KΩ	±(0.5%+5d)	±(0.5%+5d)
20KΩ	±(0.5%+5d)	±(0.5%+5d)
200KΩ	±(0.5%+5d)	±(0.5%+5d)
2MΩ	±(1%+5d)	±(1%+5d)	After OpenCAL.
20MΩ	±(1%+5d)	±(2%+5d)	After OpenCAL.
200MΩ	±(2%+5d)	±(5%+5d)	After OpenCAL.

Range	Accuracy	Accuracy	Remark
	10KHz	100KHz
20Ω	±(1%+5d)	±(2%+5d)	After ShortCAL.
200Ω	±(0.5%+5d)	±(0.5%+5d)
2KΩ	±(0.5%+5d)	±(0.5%+5d)
20KΩ	±(0.5%+5d)	±(0.5%+5d)
200KΩ	±(0.5%+5d)	±(0.5%+5d)
2MΩ	±(1%+5d)	±(2%+5d)	After OpenCAL.
20MΩ	±(2%+5d)	-------------------	After OpenCAL.

Capacitance (Cp/Cs):D≦0.1

Range	Accuracy	Accuracy	Remark
	100Hz/120Hz	1000Hz
20pF	±(2%+5d)	±(1%+5d)	After OpenCAL.
200pF	±(1%+5d)	±(1%+5d)	After OpenCAL.
2000pF	±(0.8%+5d)	±(0.8%+5d)	After OpenCAL.
20nF	±(0.5%+5d)	±(0.5%+5d)
200nF	±(0.5%+5d)	±(0.5%+5d)
2000nF	±(0.5%+5d)	±(0.5%+5d)
20uF	±(0.5%+5d)	±(0.5%+5d)
200uF	±(0.5%+5d)	±(0.5%+5d)	After ShortCAL.
2000uF	±(1%+5d)	±(1%+5d)	After ShortCAL.
20mF	±(2%+5d)	-------------------	After ShortCAL.

Range	Accuracy	Accuracy	Remark
	10KHz	100KHz
20pF	±(1%+5d)	±(1%+5d)	After OpenCAL.
200pF	±(0.5%+5d)	±(0.5%+5d)	After OpenCAL.
2000pF	±(0.5%+5d)	±(0.5%+5d)	After OpenCAL.
20nF	±(0.5%+5d)	±(0.5%+5d)
200nF	±(0.5%+5d)	±(0.5%+5d)
2000nF	±(0.5%+5d)	±(0.5%+5d)
20uF	±(0.8%+5d)	±(0.8%+5d)
200uF	±(1%+5d)	-------------------	After ShortCAL.

Inductance (Lp/Ls):D≦0.1

Range	Accuracy	Accuracy	Remark
	100Hz/120Hz	1000Hz
20uH	±(1%+5d)	±(1%+5d)	After ShortCAL.
200uH	±(1%+5d)	±(1%+5d)	After ShortCAL.
2000uH	±(0.8%+5d)	±(0.8%+5d)
20mH	±(0.5%+5d)	±(0.5%+5d)
200mH	±(0.5%+5d)	±(0.5%+5d)
2000mH	±(0.5%+5d)	±(0.5%+5d)
20H	±(0.5%+5d)	±(0.5%+5d)
200H	±(0.5%+5d)	±(0.8%+5d)
2000H	±(1%+5d)	-------------------	After OpenCAL.

Range	Accuracy	Accuracy	Remark
	10KHz	100KHz
20uH	±(1%+5d)	±(1%+5d)	After ShortCAL.
200uH	±(0.8%+5d)	±(0.8%+5d)	After ShortCAL.
2000uH	±(0.5%+5d)	±(0.5%+5d)
20mH	±(0.5%+5d)	±(0.5%+5d)
200mH	±(0.5%+5d)	-------------------
2000mH	±(0.5%+5d)	-------------------

Model : LCR-9183
Function same as LCR-9184, but without LCD backlight structure, without sorting function and the accuracy will be larger than LCR-9184

* Appearance and specifications listed in this brochure are subject to change without notice
