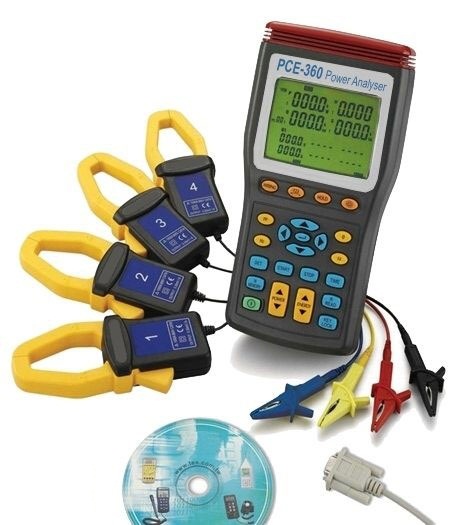

Máy phân tích công suất PCE-360

(ảnh Máy phân tích công suất PCE-360 )

- Dải điện áp đo: 0 to 999.9V true RMS, ±0.3%

- Dải dòng điện đo: 0 to 999.9 true RMS, ±0.5%

- Đo công suất tác dụng: 0 to 999.9 kW, ±1%

- Đo công suất biểu kiến: 0 to 999.9 kVA, ±1%

- Đo công suất phản kháng: 0 to 999.9 kVar
- Đo hệ số công suất: 0 đến +1

Góc pha: -90° to +90° / ±3 dgts / 0.1

Đo tần số (U > 50V): 40 to 100 Hz / ±0.1%

Recognition of Revolving field (UL > 50V)

Đo kWh: 0 to 9999 MWh / ±1% reading

Đo kVAh: 0 to 9999 MVAh / ±1% reading

Đo kVarh: 0 to 9999 MVarh / ±1% reading

Bộ ghi dữ liệu: 512 kB

Giao tiếp máy tính: lựa chọn thêm cáp RS-232

Phần mêm: tương thích Windows 2000, XP và ME

Màn hình hiển thị: LCD

Nguồn cung cấp: 8 pin- AA (1.5V)

Kích thước: 235 x 117 x 54 mm

Trọng lượng: 730 g

Điều kiện hoạt động: độ ẩm 85%, nhiệt độ 0 đến +35°C

Cấp bảo vệ / tiểu chuẩn: IP 65 / IEC 1010 - 1, 600 V CAT III

Hãng sản xuất: PCE -UK
Bảo hành : 12 months

Giá: 58.400.000 VND

Báo giá Máy phân tích công suất PCE-360

Đặt hàng

Power analyzer three phase power and harmonics analyzer (real time) with data storage, PC interface and software
The PCE-360 power analyzer is ideal to perform an analysis over a long period of time. The power analyzer comes with everything you will need to measure and evaluate, including software and data cable. The saved readings can be transferred to a PC for evaluation. The power analyzer comes calibrated from the factory and can include an optional laboratory calibration and ISO certificate. (to allow for an annual recalibration).

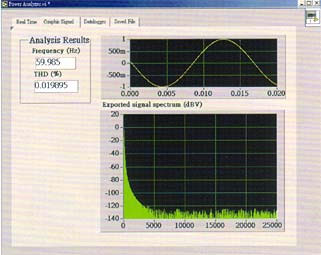

Real time view, recording and analysis of voltage and current (real effective). It measures power factor, phase angle as well as effective, apparent and reactive power. It includes a pin to measure the neutral conductor. Electrical conductor diameter: max. 40 mm. Harmonic analysis through the software (voltage and current). 512 K Recorder (20.000 group of values). Additional memory for 99 simple measurements. RS-232 port, connecting cable to a PC and analysis software. Large display with 10 indications. ISO calibration certificate can be ordered additionally. View / print user's manual of the PCE-360 power analyzer View or print the user's manual
The PCE-360 power analyzer and the portable energy meter measuring an electric cupboard. As you can see in the adjoining image (right), clamps are very compact notwithstanding their great opening diameter. This allows to perform measurements in cables with a great diameter or in narrow places.
Technical specifications
Voltage measurement	0 to 999.9V true RMS ±0.3% reading +10 dgts / 0.1V
Current measurement	0 to 999.9 true RMS ±0.5% reading +15 dgts / 0.1A
Active power measurement	0 to 999.9 kW ±1% reading +20 dgts / 0.1 KW
Apparent power measurement	0 to 999.9 kVA ±1% reading +20 dgts / 0.1 KVA
Reactive power measurement	0 to 999.9 kVar ±1% reading +20 dgts / 0.1 KVar
Power factor measurement	0 to +1 / ±3 dgts / 0.001
Phase angle	-90° to +90° / ±3 dgts / 0.1
Frequency measurement (U > 50V)	40 to 100 Hz / ±0.1% reading +2 dgts / 0.1 Hz
Recognition of Revolving field (UL > 50V)
Effective work	0 to 9999 MWh / ±1% reading +20 dgts
Apparent work	0 to 9999 MVAh / ±1% reading +20 dgts
Reactive work	0 to 9999 MVarh / ±1% reading +20 dgts
Data Logger	512 kB
Interface	Optical RS-232
Software and data cable	both included and compatible with Windows 2000, XP and ME
Display	LCD with backlight
Power	8 - AA batteries (1.5V) (Mignon)
Dimensions	235 x 117 x 54 mm
Weight	730 g
Operating conditions	85% maximum relative humidity / 0 to +35°C
Ingress protection / Standard	IP 65 / IEC 1010 - 1, 600 V CAT III

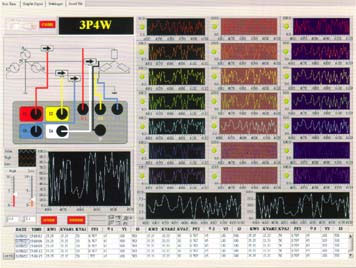

Software

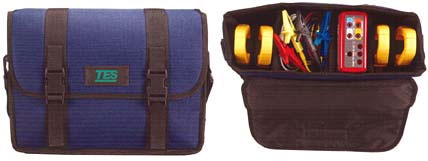

Contents PCE-360 power analyzer, 4 current clamps, 4 alligator clips with 3meters of cable for each one, 4 safety measuring cables, 8 baterías, adaptor, carrying case, RS-232 PC cable, software (English and German) and user's manual
