Máy phân tích công suất PCE-PA 8000

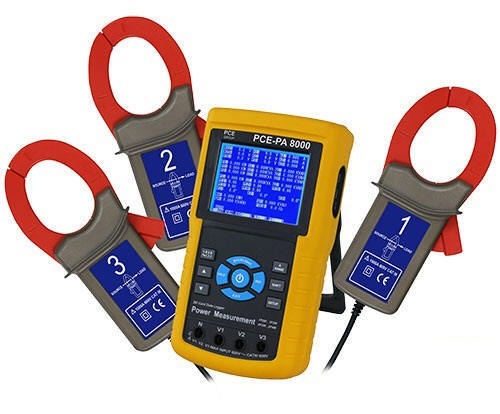

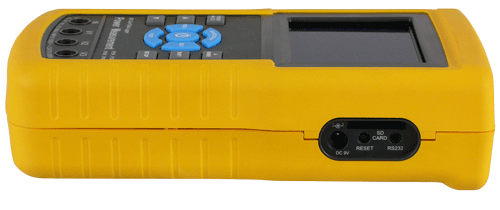

PCE-PA 8000 three-phase Power Analyzer three-phase Power Analyzer (real time) with registration in the SD card, interface

The PCE-PA 8000 Power Analyzer is able to measure and record the power in both single-phase or three-phase circuits. With the PCE-PA 8000 Power Analyzer you will be able to perform prolonged measurements. Measurement values are saved in xls format in the SD card of our power analyzer to be easily analyzed on the computer. Measurement rate can be set from 2 to 7200 seconds. The PCE-PA 8000 Power Analyzer can also measure power and determine both power factor and phase angle. The clamps of the PCE-PA 8000 Power Analyzer can be used for cables with a diameter of  50 mm. The PCE-PA 8000 is the ideal tool to be used in power suplí networks. Its 3,7" display allows to read all measured values for a quick analysis as well as it provides a view of the current, voltage and power.

View / print user’s manual of the PCE-PA 8000 three-phase Power Analyzer

- Analysis of a network of 3 phases/ 4 conduc-
tors 3 phases / 3 conductors, 1 phase /
2 conductors, 1 phase/3 conductors
- Measures effective real value of current and
voltage                                                           - Measures active, apparent and reactive power
- Power Factor (PF), phase angle (Φ)
- Measures voltage up to 600V

- Measures current up to 1200 A
- It meets the IEC 1010 and CAT III 600V
standards
- Integrated timer and calendar to record data
- Measured values are recorded in the SD card
- Data is stored in Excel format for further
valoration
- Data can be transferred to a PC through data
cable
- Large 3,7" LCD display

Technical Specifications

Voltage (AC V)

Measurement range

Resolution

Accuracy

10 V ... 600 V (phase to neutral)

0,1 V

±(0,5 % + 0,5 V)

10 V ... 600 V (phase o neutral)

Current (AC A)

Measurement range

Resolution

Accuracy

20 A

0,001 A (< 10 A) 0,01 A (≥10 A)

±(0,5 % + 0,1 V)

200 A

0,01 A (< 100 A)
0,1 A (≥100 A)

±(0,5 % + 0,5 A)

1200 A

0,1 A (< 1000 A)
1 A (≥1000 A)

±(0,5 A + 5 A)

Active power

Measurement range

Resolution

Accuracy

0 KW ... 9,999 KW

0,001 KW

±(1 % + 0,008 KW)

10 KW ... 99,99 KW

0,01 KW

±(1 % + 0,008 KW)

100 KW ... 999,9 KW

0,1 KW

±(1 % + 0,8 KW)

1 MW ... 9,999 MW

0,001 MW

±(1 % + 0,008 MW)

Apparent power

Measurement range

Resolution

Accuracy

0 KVA ... 9,999 KVA

0,001 KVA

±(1 % + 0,008 KVA)

10 KVA ... 99,99 KVA

0,01 KVA

±(1 % + 0,08 KVA)

100 KVA ... 999,9 KVA

0,1 KVA

±(1 % + 0,8 KVA)

1 MVA ... 9,999 MVA

0,001 MVA

±(1 % + 0,008 MVA)

Reactive power

Measurement range

Resolution

Accuracy

0 KVAR ... 9,999 KVAR

0,001 KVAR

±(1 % + 0,008 KVAR)

10 KVAR ... 99,99 KVAR

0,01 KVAR

±(1 % + 0,08 KVAR)

100 KVAR ... 999,9 KVAR

0,1 KVAR

±(1 % + 0,8 KVAR)

1 MVAR ... 9,999 MVAR

0,001 MVAR

±(1 % + 0,008 MVAR)

Active energy

Measurement range

Resolution

Accuracy

0 KWh ... 9,999 KWh

0,001 KWh

±(1 % + 0,008 KWh)

10 KWh ... 99,99 KWh

0,01 KWh

±(1 % + 0,08 KWh)

100 KWh ... 999,9 KWh

0,1 KWh

±(1 % + 0,8 KWh)

1 MWh... 9,999 MWh

0,001 MWh

±(1 % + 0,008 MWh)

Apparent energy

Measurement range

Resolution

Accuracy

0 KVAh ... 9,999 KVAh

0,001 KVAh

±(2 % + 0,008 KVAh)

10 KVAh ... 99,99 KVAh

0,01 KVAh

±(2 % + 0,08 KVAh)

100 KVAh ... 999,9 KVAh

0,1 KVAh

±(2 % + 0,8 KVAh)

1 MVAh... 9,999 MVAh

0,001 MVAh

±(2 % + 0,008 MVAh)

Reactive energy

Measurement range

Resolution

Accuracy

0 KVARh ... 9,999 KVARh

0,001 KVARh

±(2 % + 0,008 KVARh)

10 KVARh ... 99,99 KVARh

0,01 KVARh

±(2 % + 0,08 KVARh)

100 KVARh ... 999,9 KVARh

0,1 KVARh

±(2 % + 0,8 KVARh)

1 MVARh... 9,999 MVARh

0,001 MVARh

±(2 % + 0,008 MVARh)

Power factor

Measurement range

Resolution

Accuracy

0 ... 1

0,01

±0,04

Phase angle

Measurement range

Resolution

Accuracy

-180º ... 180º

0,1º

±1º

Frequency

Measurement range

Resolution

Accuracy

45 Hz ... 65 Hz

0,1 Hz

0,1 Hz

General technical specifications

Display

3,7 " LCD (320 x 240 pixels) with LED backlight

Electrical properties

AC V, AC A, active power, apparent power, power factor, phase angle, mains frequency

Voltage ranges

10 V ... 600 V AC, automatic range selection

Security / Standards

IEC1010CAT III 600V

AC V input resistance

10 MΩ

Operation frequency of current clamps

40 Hz ... 1 kHz

Tested operation frequency of current clamps

45 Hz ... 65 Hz

Overload protection

AC V

720 V rms

AC A

1300 A with current clips

Memory

SD card

Measurement rate

1 second

Data logger

SD

Measurement rate

2 seconds... 7200 seconds

Data output

USB or RS-232, depending on the connection cable

Operating temperature

0 ºC ... 50 ºC

Operating humidity

< 80 % H.r.

Power

8 x 1,5 V AA batteries / mains component

Input current

Meter: 300 mA DC
Clamp: 34 mA DC

Max. diameter

50 mm

Weight

Meter: 948 g (with batteries)
Clip: 467 g (with cable)

Dimensions

Meter: 225 x 125 x 64 mm

Clamp: 210 x 64 x 33 mm

jaw: 86 mm (exterior)

Software

Thanks to the SD card, it is possible to read measured

Delivery contents
1 x PCE-PA 8000 Power Analyzer, 3 x current clamps, 4 x test cables, 4 x alligator clips, 1 x 2 GB SD card, 1 x 9 V DC mains component, 8 x batteries 1,5 V AA, 1 x carrying case

Here you can see the optional accessories of the PCE-PA 8000 Power Analyzer
