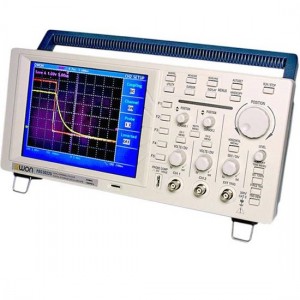

Máy hiện sóng số Owon PDS5022S 25Mhz, 2 kênh

Bandwidth      25MHz

Sample Rate ( Real time )      100MS/s

Rise time      ≤14ns

Display      7.8 inch color LCD, 256 colors for STN screen /65536 colors for  TFT  screen, 640×480 pixels

Channel      Dual channels + external trigger

Sampling mode      Normal sample Peak detect and Average

Record length

Max.5000 for each channel

Sampling range      10S/s~100MS/s

Horizontal scale (s/div)  5ns/div-100s/div  step by 1-2.5-5

Vertical sensitivity      5mV ~5V/div (at BNC input)

DC Gain Accuracy      ±5%

Max. input voltage  300V(PK-PK)(DC + AC PK-PK)

Input impedance      1MΩ±2% in parallel with 20pF±5pF

Input coupling      AC, DC

Trigger Mode      Edge, Video

Vertical resolution (A/D)      8 bits (2CH simultaneously)

Sampling rate / relay time  accuracy      ±100ppm

Waveform storage      4 waveforms

Waveform math      +, -, FFT

Interface      USB Data Cable (Transfer waveform data to a PC)

Power supply      100V-240V AC, 50Hz/60Hz, CAT II

Dimension      350mm(L)*157mm(H)*103mm(W)

Weight     1KG

Manufacture : China
