Máy hiện sóng số Tektronix TDS2012C 100MHz, 2 kênh

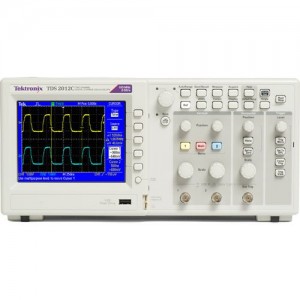

(ảnh Máy hiện sóng số Tektronix TDS2012C)

Manufacturer: Tektronix-USA

Key Performance Specifications

100 MHz Bandwidth Models

2-channel Models

2GS/s Sample Rate on All Channels

2.5k point Record Length on All Channels

Advanced Triggers including Pulse Width Trigger and Line-selectable Video Trigger

Ease-of-Use Features

16 Automated Measurements, and FFT Analysis for Simplified Waveform Analysis

Built-in Waveform Limit Testing

Automated, Extended Data Logging Feature

Autoset and Signal Auto-ranging

Built-in Context-sensitive Help

Probe Check Wizard

Multiple-language User Interface

5.7 in. (144 mm) Active TFT Color Display

Small Footprint and Lightweight – Only 4.9 in. (124 mm) Deep and 4.4 lb. (2 kg)

Connectivity

USB 2.0 Host Port on the Front Panel for Quick and Easy Data Storage

USB 2.0 Device Port on Rear Panel for Easy Connection to a PC or Direct Printing to a PictBridge®-compatible Printer

Includes National Instrument’s LabVIEW SignalExpress™ TE Limited Edition and Tektronix OpenChoice® Software for Connecting Your Bench

Giá: 32.550.000 VND

Báo giá Máy hiện sóng số Tektronix TDS2012C

Đặt hàng

Characteristics

TDS2000C Series Digital Storage Oscilloscopes

	TDS2001C	TDS2002C	TDS2004C	TDS2012C	TDS2014C	TDS2022C	TDS2024C
Display (QVGA LCD)	TFT	TFT	TFT	TFT	TFT	TFT	TFT
Bandwidth*³	50 MHz	70 MHz	70 MHz	100 MHz	100 MHz	200 MHz	200 MHz
Channels	2	2	4	2	4	2	4
External Trigger Input	Included on all models
Sample Rate on Each Channel	500 MS/s	1.0 GS/s	1.0 GS/s	2.0 GS/s	2.0 GS/s	2.0 GS/s	2.0 GS/s
Record Length	2.5k points at all time bases on all models
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV to 5 V/div on all models with calibrated fine adjustment
DC Vertical Accuracy	±3% on all models
Vertical Zoom	Vertically expand or compress a live or stopped waveform
Maximum Input Voltage	300 V_RMS CAT II; derated at 20 dB/decade above 100 kHz to 13 V_p-p AC at 3 MHz
Position Range	2 mV to 200 mV/div +2 V >200 mV to 5 V/div +50 V
Bandwidth Limit	20 MHz for all models
Input Coupling	AC, DC, GND on all models
Input Impedance	1 MΩ in parallel with 20 pF
Time Base Range	5 ns to 50 s/div	5 ns to 50 s/div	5 ns to 50 s/div	2.5 ns to 50 s/div	2.5 ns to 50 s/div	2.5 ns to 50 s/div	2.5 ns to 50 s/div
Time Base Accuracy	50 ppm
Horizontal Zoom	Horizontally expand or compress a live or stopped waveform
I/O Interfaces
USB Ports	USB host port on front panel supports USB flash drives USB device port on back of instrument supports connection to PC and all PictBridge-compatible printers
GPIB	Optional
Nonvolatile Storage
Reference Waveform Display	(2) 2.5k point reference waveforms
Waveform Storage without USB Flash Drive	(2) 2.5k point	(2) 2.5k point	(4) 2.5k point	(2) 2.5k point	(4) 2.5k point	(2) 2.5k point	(4) 2.5k point
Maximum USB Flash Drive Size	64 GB
Waveform Storage with USB Flash Drive	96 or more reference waveforms per 8 MB
Setups without USB Flash Drive	10 front-panel setups
Setups with USB Flash Drive	4000 or more front-panel setups per 8 MB
Screen Images with USB Flash Drive	128 or more screen images per 8 MB (the number of images depends on file format selected)
Save All with USB Flash Drive	12 or more Save All operations per 8 MB A single Save All operation creates 3 to 9 files (setup, image, plus one file for each displayed waveform)
